Airgoesin AWG12#-34# Wire Cable Cutting and Stripping Machine Stripper Cutter

Description
100% brand new and high quality
CYou are bidding on a Wire Cutting and Stripping Machine. Controlled by a microcomputer, it cuts and strips wire automatically with a very clean-designed mechanism. Direct and easy-to-use interface allow unexperieced users to operate it easily. Various cutting style and programmable length and distance can suit any wire assemble needs. Rapid and automatic cutting highly boost the productivity.
LCD display
Restore as many as 99 cutting&stripping procedures
Adaptation of two input voltage: 110V 60Hz or 220-240V 50Hz
Orders will be shipped out according with the buyer's country standard. Please contact us in advance if you need the specail voltage.
Support complete strip, half strip and middle-strip
Wire type: PVC, Tefron, Glass Wire
Processable Wire Size: AWG12# (0.0808 inch , 3.31mm2) —34# (0.00631 inch ,0.0201mm2)
Cutting Tolerance: (0.2 ± 0.002 × L) mm
Strpped wire head length: 0.1-15mm
Wire length:1—9999(mm)
Process speed:L=100mm,300pcs/min
Cutting Speed: 1—6 adjustable
Build in 9 middle-strip function in addition to end-strip.
Power consumption:200W
Overall size: 405mm x 330mm x 250mm
Machine net weight: 64 lbs (29kg)
Packing weight: 62lbs (28kg)

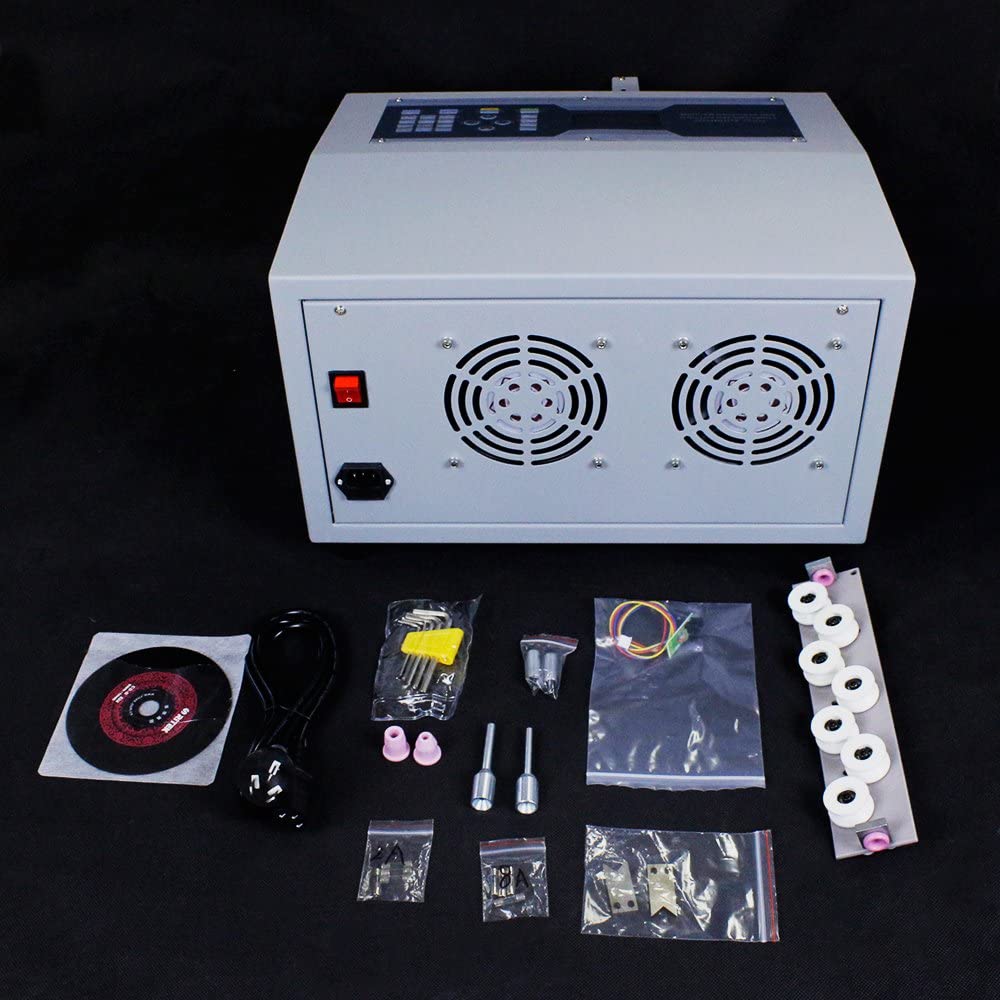

Packing List
1 wire cutting machine
3 tubes of different sizes to restrict wires
1 extra driver board for replacement
4 hexagonal wrench of different sizes
8 fuses of different size
1 disc with user manual included
1 power cable

• This is an advanced wire cutting and stripping machine which can highly boost the productivity, it is controlled by a microcomputer, it cuts and strips wire automatically with a very clean-designed mechanism.
• This machine comes with enhanced dual action mechanism and designed to cut large copper wires up to AWG 12#.
• English LCD display. Restore as many as 99 cutting & stripping procedures
• Various cutting style and programmable length and distance can suit any wire assemble needs.
• Support complete strip, half strip and middle-strip.
